Wireless TEL U01
4G/5G RC UGV
EL V01 4G/5G UGV is a lightweight off-road robot platform car powered by the TEL801 AI+ module. It showcases the powerful remote control, communication, and serial communication capabilities of TEL801 and its software. The vehicle features a reliable, proven consumer-grade hub frame and a standard 60V balance bike battery, ensuring safety and cost-effectiveness.
Product Features
The TEL U01 unmanned vehicle uses TideLink’s WEB Remote Vehicle Control Panel for operation. With a SIM card inserted, it automatically connects to the TideLink cloud platform, enabling control via a realistic simulation interface, game steering wheel, or mobile phone. It supports remote control, Bluetooth control, follow mode, and AI control. Suitable for unmanned systems, smart UGVs, logistics UGVs, robots, and more. Ideal for students, hobbyists, and enterprises, TEL U01 demonstrates advanced autonomous control and remote technology. Open-source software, hardware, and firmware support from basic to advanced learning and practice. TideLink’s engineering team, including experts from Tsinghua University and returning overseas PhDs, provides online and offline design guidance and technical support.
Specifications
|
Specifications
|
Content
|
|---|---|
Specifications
Communication Capabilities
|
Content
Supports 5G (SA/NSA) and 4G, with full network compatibility for major operators and broadcast frequencies: N41/N78/N79/N1/N28, LTE-FDD, LTE-TDD.
|
Specifications
Transmission Control Latency
|
Content
Minimum image transmission latency < 100ms, minimum control latency < 30ms
|
Specifications
Image and Audio Transmission Capability
|
Content
1080P 30Hz, H.264 encoding; supports two-way internet voice communication. Includes video recording and photo capture functions.
|
Specifications
Remote Control Methods
|
Content
Via 4G LTE and Wi-Fi networks. No software installation required; use TideLink’s "Web Remote Drone Control Platform" on PC or mobile.
|
Specifications
Vehicle Dimensions
|
Content
600x550x200 mm; wheelbase: 400 mm; tire size: 10 inches; ground clearance: 200 mm; weight: 12 kg; payload: 50 kg.
|
Specifications
Electrical Specifications
|
Content
Battery: 60V standard balance scooter lithium battery; Motor power: 650W x 2.
|
Specifications
Vehicle Specifications
|
Content
Maximum speed: 25 km/h; Maximum range: 50 km; Maximum runtime: 12 hours.
|
Specifications
Payload Capacity
|
Content
Can carry control robots, robotic arms, various sensors, controllers, actuators, lighting equipment, and machinery.
|
Specifications
Development Support
|
Content
Open Source: Software, firmware, hardware design；Professional Guidance: Engineering support for modifications, structure design, industrial design (ID), software design, and electronics design
|

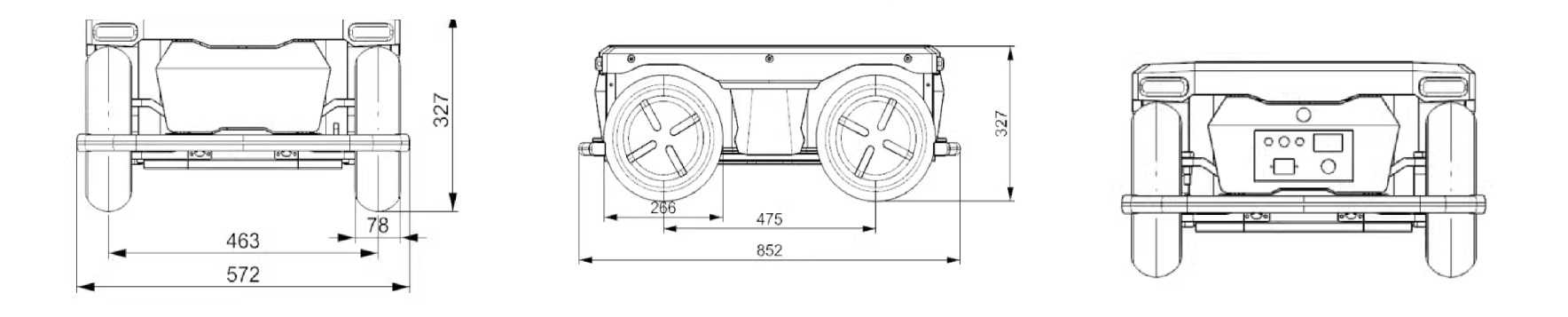

产品尺寸
