WirelessX TEL C01
5G PTZ Camera

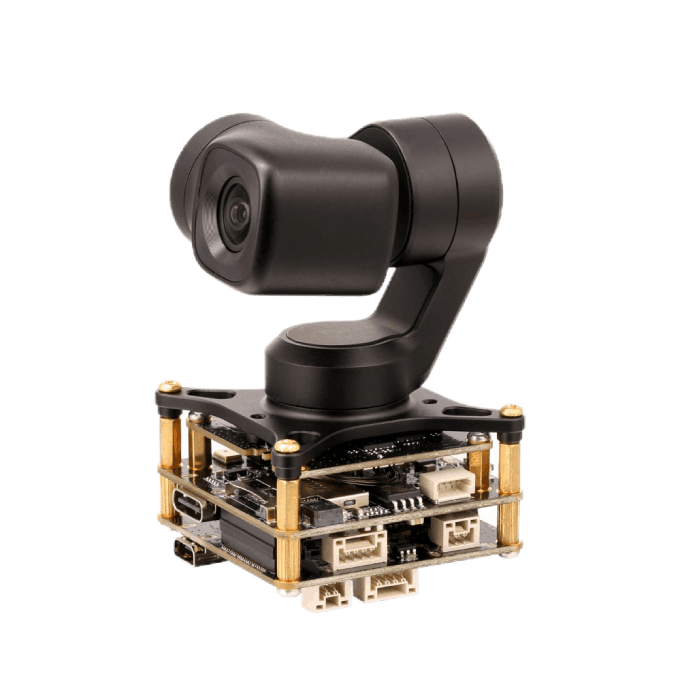

TEL C01 4G/5G Gimbal is a remote-controlled stabilized camera with a TEL801 AI+ module. It features a 12MP three-axis gimbal and demonstrates TEL801’s robust remote control and imaging capabilities.
Product Features
TEL C01 features mechanical stabilization, high-definition pixels, and 180-degree rotation. Ideal for drones, unmanned vehicles, and car-mounted devices. It connects to the TideLink cloud platform via a SIM card and can be remotely controlled through the TEL801WEB remote control panel using a game controller or smartphone.
TEL C01 is ideal for showcasing camera and mechanical control technologies. It’s perfect for enthusiasts, manufacturers, and DIYers, offering open-source software, hardware, and firmware for learning and practice. TideLink’s expert team provides regular guidance, insights, and support to the community.
Specifications
|
Specifications
|
Content
|
|---|---|
Specifications
Communication Capabilities
|
Content
Supports 5G (SA/NSA) and 4G, with full network compatibility for major operators and broadcast frequencies: N41/N78/N79/N1/N28, LTE-FDD, LTE-TDD.
|
Specifications
Transmission Control Latency
|
Content
Minimum image transmission latency < 100ms, minimum control latency < 30ms
|
Specifications
Image Transmission Capability
|
Content
4K 30Hz, H.264 encoding, photo format JPG, supports 8M, 5M, 3M, 2M.
|
Specifications
Remote Control Methods
|
Content
4G LTE and Wi-Fi. No software needed; control via TEL801 Remote Control Panel on PC or mobile.
|
Specifications
Mechanical Dimensions
|
Content
40.6X28.7X41.9mm
|
Specifications
Image Sensor
|
Content
OV OS12D40, 11.3M effective pixels, sensor size: 1/2.5", pixel size: 1.4x1.4μm.
|
Specifications
Video Resolution
|
Content
Up to 4K 30Hz, 2.7K 60Hz, 1080p 120Hz, 720p 240Hz.
|
Specifications
Optical Parameters
|
Content
Focal length: 15.43mm, Aperture: f/2.0, FOV: 143°.
|
Specifications
Development Support
|
Content
Open Source: Software, firmware, hardware design；Professional Guidance: Engineering support for modifications, structure design, industrial design (ID), software design, and electronics design
|
